COLORCATCH NANO

COLORCATCH NANO is a very precise and patented color measuring device. It is the only colorimeter in the world equipped with a camera that can be connected to a smartphone, tablet or PC. The image taken by the NANO is enlarged 6 times.

With this solution you can specifically pinpoint what you want to measure. The NANO is able to measure the color of a single thread of a shirt and automatically extract up to 5 dominant colors.

Be confident with your color choice

Identify color accurately in RAL, NCS or other color collections.

On www.colorix.com/update you can register your COLORCATCH NANO and acquire other color cards.

List of color cards available

You can not find your favorite color collection? Let us know.
Send a suggestion

COLORCATCH NANO can see and measure details, which are invisible to the human eye.

How it works ?

This video shows you the steps to perform a color measurement.

Measure - Apply - Communicate

This video shows you how you can measure a color with the NANO and directly applied it to a pre-painted image.

Measurement results

NANO is the most accurate device on the market on textured surfaces.

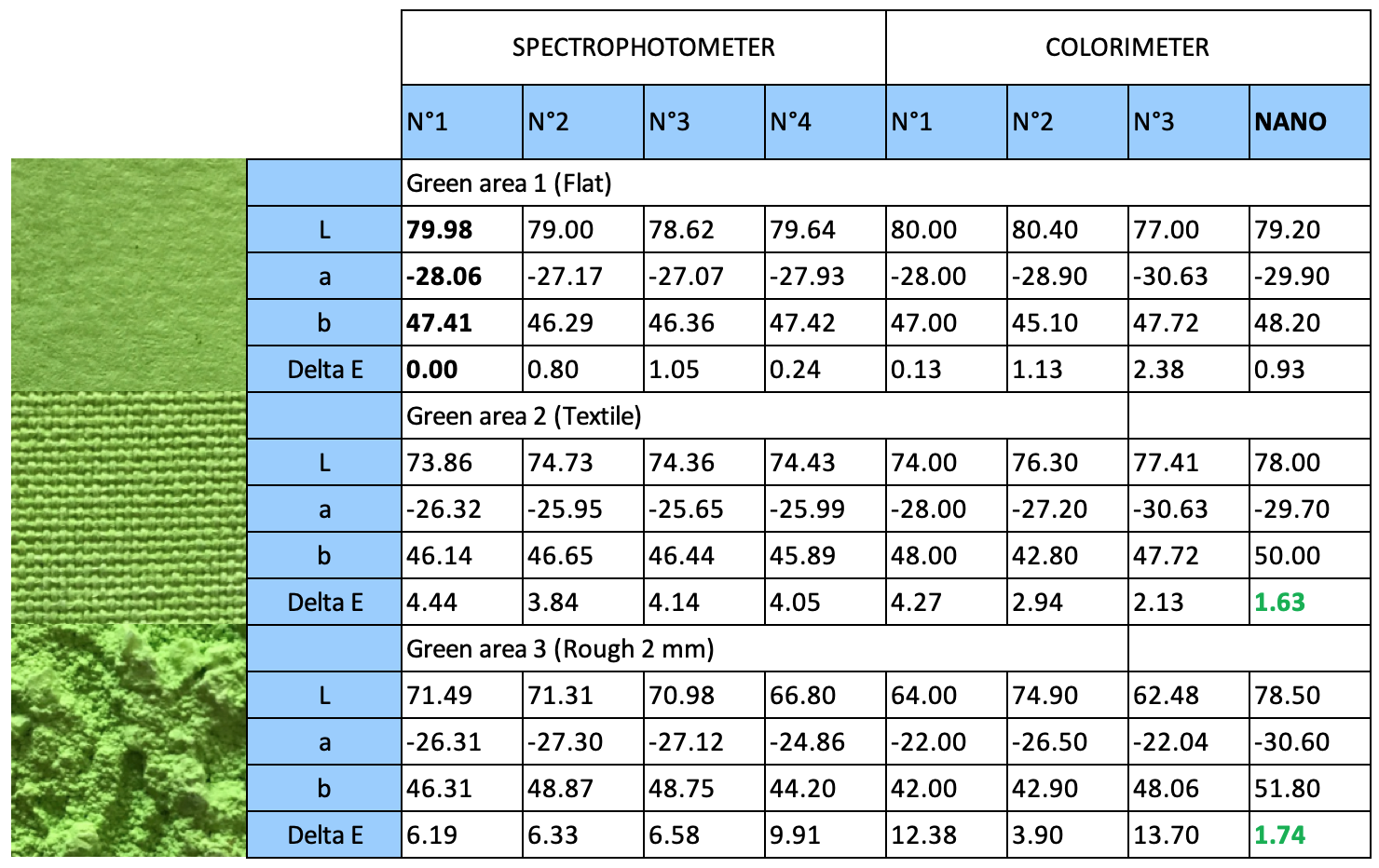

Here below the L*a*b* values measured on a green sample by an independent laboratory.
The sample consists of 3 areas painted with the same green color. The first area, plain flat, measured with a spectrophotometer N°1 is used as reference value (marked with bold font face in the here below list). The second area, has a textile texture and the third area has a wall structure of 2 mm. NANO is the most accurate device, it has the smallest delta E on textile and textured surfaces. NANO reads and measures 50'000 pixels separately. During this reading process it automatically eliminates all non-dominant colors such as shade effects and dirty surfaces. This can not be done with other devices because they make an average with all the measurement area.

Optical Product Specification

  • Measuring area: 0.36 to 8 mm with automatic extraction of up to 5 dominant colors
  • Light source: 9 x D65 LED (Daylight)
  • Sensor: CCD camera 224 x 224 pixels
  • Measurement geometry: 45°/0°
  • Inter-instrument agreement: 0.30 ΔE

Specifications

  • Power supply: Rechargeable Lithium battery ion 400 mAh
  • Autonomy: 4 to 6 hours of use, 300 days on standby
  • Recharge: Maximum 6 hours
  • Dimensions: 51 x 51 mm (∅ x h)
  • Weight: 60 grams (including battery)
  • Warranty: 2 years

COLORCATCH NANO functions with a smartphone, a tablet (iOS or Android) or a PC and comes with the following 4 cables:

  • Lightning
  • USB
  • USB-C
  • USB type micro B

COLORCATCH NANO is Made for:

  • iPhone XS Max
  • iPhone XS
  • iPhone XR
  • iPhone X
  • iPhone 8 Plus
  • iPhone 8
  • iPhone 7 Plus
  • iPhone 7
  • iPhone SE
  • iPhone 6s Plus
  • iPhone 6s
  • iPhone 6
  • iPhone 5s
  • iPhone 5c
  • iPhone 5
  • iPad Pro 11-inch
  • iPad Pro 12.9 -inch (3rd Generation)
  • iPad Pro 10.5-inch
  • iPad Pro 12.9-inch (2nd Generation)
  • iPad Pro 12.9-inch (1st Generation)
  • iPad Pro 9.7-inch
  • iPad Air 2
  • iPad Air
  • iPad mini 4
  • iPad mini 3
  • iPad mini 2
  • iPad mini
  • iPad (5th generation)
  • iPad (4th generation)
  • iPod touch (6th generation)
  • iPod touch (5th generation)
  • Android devices that can act as a USB Host
  • PC

Compatibility

NANO is currently compatible with:
